Shipwise

A courier app where every job shows distance, time left and pay.

Shipwise logo beside two phones showing package status tiles and a list of waiting deliveries with prices
Role
UI/UX Designer
Platform
Mobile
Software
Figma
Design system
Light mint canvas, dark slate cards, bright green and yellow actions

Try the prototype

Play through a courier's shift, built from the Figma boards. Open In transit, pick a job and slide to drop it off, then finish with the QR scan. Packages under Waiting can be picked up, and the counts update as you go.

Pull the handle under a shipment to see the map.

The problem

Couriers juggle many time-bound packages at once. They needed to see at a glance what’s urgent, where it goes and what it pays.

Features

  • ·Interactive prototype of the courier’s day: package overview, job list and shipment detail
  • ·Daily package overview
  • ·Jobs with distance, time left and pay
  • ·Shipment detail with map and history
  • ·QR scan to finish a drop

Approach

  1. 01

    Daily overview

    ProblemA courier may carry dozens of packages a day, and the first question each morning is what state they are all in.

    SolutionThe home screen opens on the day's package count with four status tiles: In transit, Waiting, Completed and Cancelled, each with its count.

  2. 02

    Job list

    ProblemChoosing the next job means weighing distance, deadline and pay at once, which usually live on separate screens.

    SolutionEach job row shows kilometres, time remaining and pay together. A week strip at the top switches days, and a filter narrows the list.

  3. 03

    Urgency

    ProblemRows that look identical make it easy to miss a delivery that is about to run late.

    SolutionAdded a deadline bar to each job that fills as time passes. When time is short, the row and bar turn red, as on the "20 minutes remaining" job.

  4. 04

    Shipment detail

    ProblemAt the door, the courier needs the address, remaining time and the package's past steps without hunting for them.

    SolutionThe shipment screen stacks a dark address card, a distance, time and pay card, and a map. A package history below runs from Registered to Shipment picked up.

  5. 05

    Handoff

    ProblemPickup and drop-off need to be confirmed quickly and without accidental taps.

    SolutionA single swipe button changes with the job: yellow "Pick up package" before collection, green "Drop off package" after. The drop ends with a QR scan and a Finish drop swipe.

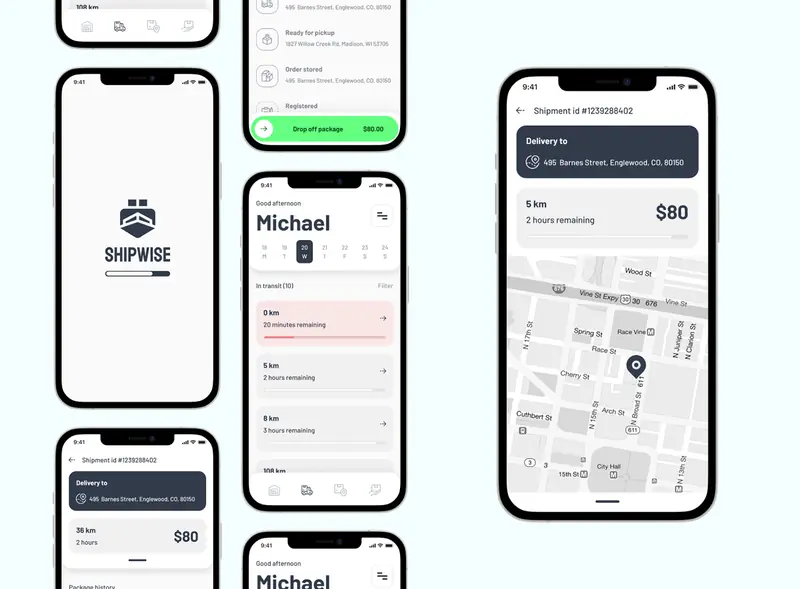

Shipwise splash screen, in-transit delivery list and shipment detail with street map across several phones

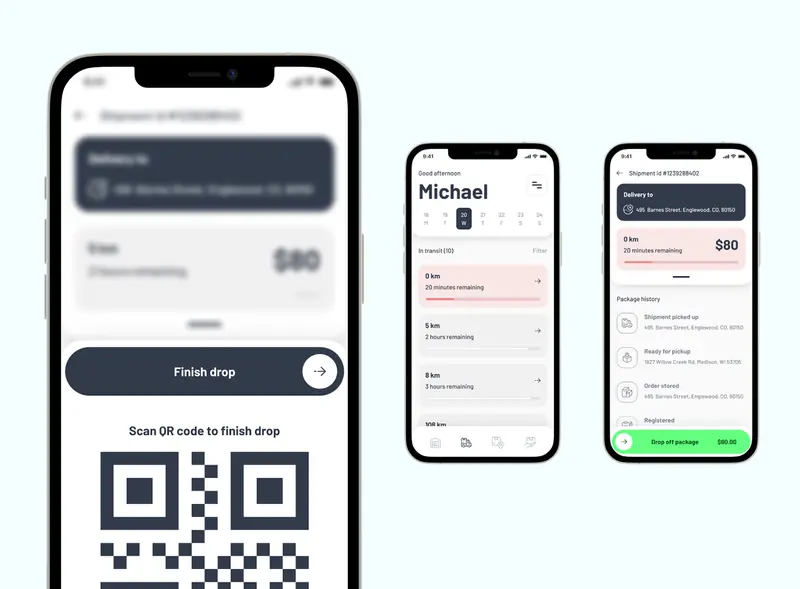

Shipwise QR code drop-off screen beside the in-transit list and shipment package history

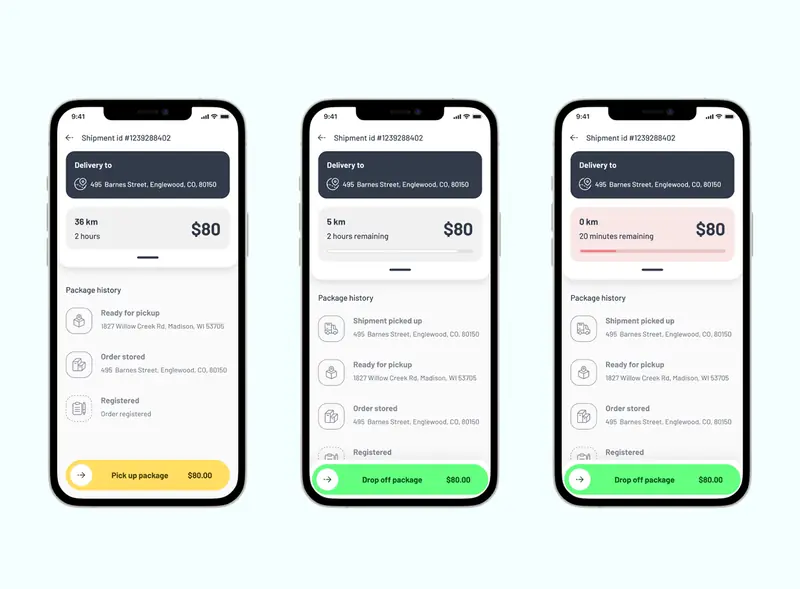

Shipwise shipment detail on three phones moving from pick up to drop off with package history

Design library

Colour
  • Slate#323B4BText, address cards
  • Go green#63FF80Drop off action
  • Pickup yellow#FFDD63Pick up action
  • Late red#F47070Deadline warning
  • Blush#F9E6E6Urgent job rows
  • Mint canvas#F4FEFFBackground
  • Card grey#F2F1F1Job cards
Type
  • Display · 44/700Michael
  • Title · 20/600In transit
  • Body · 15/400495 Barnes Street, Englewood
  • Caption · 12/50020 minutes remaining

Urgent shipment header

Destination, distance, pay and a countdown bar that turns red when time runs short.

1 property · 3 variants · 1 extended
◇ Urgent shipment header Normal
Delivery to495 Barnes Street, Englewood, CO, 80150
5 km2 hours remaining
$80
Urgent
Delivery to495 Barnes Street, Englewood, CO, 80150
0 km20 minutes remaining
$80
Overdue
Delivery to495 Barnes Street, Englewood, CO, 80150
0 km5 minutes overdue
$80
Anatomy
Delivery to495 Barnes Street, Englewood, CO, 80150
0 km20 minutes remaining
$80
  1. Header
  2. Destination card
  3. Location icon
  4. Address
  5. Trip card
  6. Distance
  7. Time left
  8. Pay
  9. Countdown bar
Properties
Delivery to495 Barnes Street, Englewood, CO, 80150
0 km20 minutes remaining
$80
View on the original board ↗

Package status tile

Home screen tiles counting today's packages by status, each opening its list.

1 property · 4 variants
◇ Package status tile In transit
In transit10 packages
Completed
Completed8 packages
Waiting
Waiting4 packages
Cancelled
Cancelled9 packages
Anatomy
In transit10 packages
  1. Tile
  2. Status icon
  3. Status
  4. Open arrow
  5. Package count
Properties
In transit10 packages
View on the original board ↗

Deadline job row

Jobs sorted by time left; the most urgent one turns red.

2 properties · 4 variants
◇ Deadline job row CountdownPay Normal
8 km3 hours remaining
8 km3 hours remaining
$80
Urgent
0 km20 minutes remaining
0 km20 minutes remaining
$80
Anatomy
8 km3 hours remaining
  1. Row
  2. Distance
  3. Time left
  4. Pay
  5. Open arrow
  6. Countdown bar
Properties
8 km3 hours remaining
View on the original board ↗

Slide-to-confirm action

Slide to pick up or drop off with the job's pay; finish drop closes the handoff.

2 properties · 4 variants · 2 extended
◇ Slide-to-confirm action DefaultDisabled Pick up
Pick up package$80.00
Pick up package$80.00
Finish drop
Finish drop
Finish drop
Anatomy
Pick up package$80.00
  1. Track
  2. Slide handle
  3. Label
  4. Pay
Properties
Pick up package$80.00
View on the original board ↗
